Age Gender

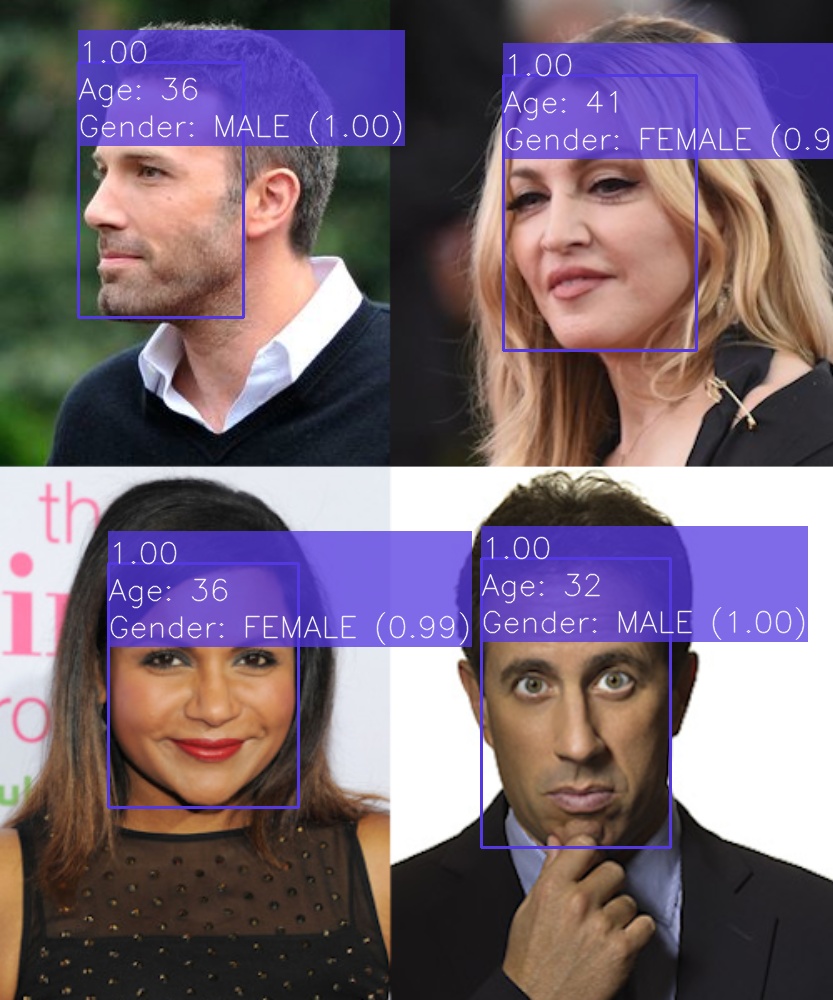

This Project aims to detect faces in images and infer their age and gender.

age gender

Data models

This project uses the Face data model.

Configuration

This project uses a configuration YAML with the following fields:

age_gender: Specifies the name and parameters of the age and gender models. It must have the following fields:
- model_name: Name of the model.
- params: The parameters of the models’ python class.
face_detector: Specifies the name and parameters of the face detector model. It must have the following fields:
- face_box_scale: Scale factor to apply to the face bounding box.
- model_name: Name of the model.
- params: The parameters of the models’ python class.
context_broker:
- host: IP address of the Context Broker.
- port: Port of the Context Broker.
- notification_uri: URI where the subscription notifications will be sent.
- check_subscription_conflicts: Flag if the subscription conflicts should be checked before creating them.
api:
- host: Bind IP address of the API server.
- port: Bind port of the API server.
- allowed_origins: List of origins that should be permitted to make cross-origin requests.
- local_image_storage: Flags if the images are stored locally and can be accessed by their path or must be retrieved from a URL.
- post_new_entity: Create a new Face entity in the context broker with the predicted age and gender when processing a Face entity.
- update_entity: Update the Face entity in the context broker with the predicted age and gender when processing a Face entity.
subscriptions: List of subscriptions to create on the context broker. Each element can have the following fields:
- entity_type: Entity type to subscribe to.
- watched_attributes: List of attributes to subscribe to.
- query: Query to filter the entities to subscribe to.

Example:

age_gender:
  model_name: age_gender
  params:
    age_model_path: ../../../data/models/age_gender/age_model.onnx
    gender_model_path: ../../../data/models/age_gender/gender_model.onnx
    do_age: True
    do_gender: True
    use_cuda: False

face_detector:
  face_box_scale: 1.2
  model_name: face_detector_retinaface
  params:
    weights_path: ../../../data/models/face_detector_retinaface/Resnet50_Final.pth
    model_name: resnet50
    confidence_threshold: 0.7
    landmarks: False
    nms_threshold: 0.4
    use_cuda: False

context_broker:
  host: 192.168.0.100
  port: 1026
  notification_uri: http://192.168.0.100:8080/ngsi-ld/v1/notify
  check_subscription_conflicts: True

api:
  host: 0.0.0.0
  port: 8080
  allowed_origins: []
  local_image_storage: True
  post_new_entity: False
  update_entity: True

subscriptions:
  - entity_type: Image
    watched_attributes: ["purpose"]
    query: "purpose==%22AgeGender%22"

API

The API allows the Project to be executed as a service. It has automatic and interactive documentation generated with swagger-ui on /docs and redoc on /redoc.

It can be executed with api.py. The --help option can be used to get a list of accepted arguments:

python api.py --help

usage: api.py [-h] [--config CONFIG] [--log-level {DEBUG,INFO,WARN,ERROR,CRITICAL}]

optional arguments:
  -h, --help            show this help message and exit
  --config CONFIG       Path to the configuration yaml (default: 'config.yaml')
  --log-level {DEBUG,INFO,WARN,ERROR,CRITICAL}
                        Log level (default: INFO)

Endpoints

GET /

Returns the name and version of the API.
- Response
  application/json
  { "title": "Age Gender API", "version": "0.2.0" }

POST /predict

If an image entity is provided, it predicts the position (bounding box) of faces in the image and estimates their age and gender. If a Face entity is provided, it uses the existing bounding box to get an image of the face and estimate its age and gender.

It returns a list of data models for each detection. The response type can be specified with the accept header (application/json or application/ld+json).

Request body

A JSON with the following fields:
- entity_id: The id of an image or a Face entity in the context broker to estimate its age end gender.
- post_to_broker: Flag if the generated data models should be posted to the context broker. Defaults to true.
application/json
```
{
  "entity_id": "string",
  "post_to_broker": true
}
```

Response

A list with the generated data models (one for each face) with the following fields:

id: The id of the entity on the context broker.
dateObserved: The date when the data model was generated.
type: The type of the data model (Face).
image: The id of the source image entity.
boundingBox: The bounding box of the face in the image with relative image coordinates.
detectionConfidence: The confidence of the detection.
age: The estimated age of the face.
gender: The estimated gender of the face.
genderConfidence: The confidence of the gender classification.

application/json

[
  {
    "id": "urn:ngsi-ld:Face:b5dWqOszEe2iW7eYE~ARXw",
    "dateObserved": "2023-05-05T10:56:05.448390",
    "type": "Face",
    "image": "urn:ngsi-ld:Image:UXNVwGfrEQ74_fl7snsQLS71jdBshsE6fq8TR1gWBn4",
    "boundingBox": {
      "xmin": 0.66875,
      "ymin": 0.21481481481481482,
      "xmax": 0.7505208333333333,
      "ymax": 0.40185185185185185
    },
    "detectionConfidence": 0.9998043179512024,
    "age": 36.279388427734375,
    "gender": "FEMALE",
    "genderConfidence": 0.9704904556274414,
    "emotion": null,
    "emotionConfidence": null,
    "features": null,
    "featuresAlgorithm": null,
    "recognitionDomain": null,
    "recognized": false,
    "recognizedDistance": null,
    "recognizedPerson": null
  }
]

application/ld+json

[
  {
    "id": "urn:ngsi-ld:Face:wPoej~szEe2CS7eYE~ARXw",
    "type": "Face",
    "@context": [
      "https://uri.etsi.org/ngsi-ld/v1/ngsi-ld-core-context.jsonld"
    ],
    "dateObserved": {
      "type": "Property",
      "value": {
        "@type": "DateTime",
        "@value": "2023-05-05T10:58:21Z"
      }
    },
    "image": {
      "type": "Relationship",
      "object": "urn:ngsi-ld:Image:UXNVwGfrEQ74_fl7snsQLS71jdBshsE6fq8TR1gWBn4"
    },
    "boundingBox": {
      "type": "Property",
      "value": {
        "xmin": 0.66875,
        "ymin": 0.21481481481481482,
        "xmax": 0.7505208333333333,
        "ymax": 0.40185185185185185
      }
    },
    "detectionConfidence": {
      "type": "Property",
      "value": 0.9998043179512024
    },
    "age": {
      "type": "Property",
      "value": 36.279388427734375
    },
    "gender": {
      "type": "Property",
      "value": "FEMALE"
    },
    "genderConfidence": {
      "type": "Property",
      "value": 0.9704904556274414
    },
    "recognized": {
      "type": "Property",
      "value": false
    },
    "dateModified": {
      "type": "Property",
      "value": {
        "@type": "DateTime",
        "@value": "2023-05-05T10:58:23Z"
      }
    },
    "dateCreated": {
      "type": "Property",
      "value": {
        "@type": "DateTime",
        "@value": "2023-05-05T10:58:23Z"
      }
    }
  }
]

POST /ngsi-ld/v1/notify

Route to notify the activation of a subscription from a context broker.
- Query parameters

  subscriptionId: The id of the subscription.
- Request body

  A JSON with the following fields:
  - id: The id of the notification.
  - type: Notification.
  - subscriptionId: The id of the subscription.
  - notifiedAt: The date when the notification was sent.
  - data: A list with the entities notified.
  application/json
  { "id": "string", "type": "Notification", "subscriptionId": "string", "notifiedAt": "string", "data": [] }
- Response

  204 no content: If the notification was processed successfully.
